Model weights (Apache 2.0): RekaAI/Reka-Inverse-Dynamics-Model on Hugging Face

Interactive World Models are different. They are visually more realistic, and can model more complex phenomena such as folding materials or squeezing towels. By embedding digital replicas into these dynamic environments, robots can execute commands through direct interaction.

Here is the challenge though. True interactivity requires a world model to accurately respond to low-level commands (e.g., moving left or right). To solve this, we introduce the Reka Inverse Dynamics Model (RIDM), which extracts low-level commands directly from real-world video data to act as ‘captions’ describing physical changes in consecutive frames.

RIDM is a compact, efficient model that processes short clips and extracts low-level motor commands like moving forward, sideways, turning or tilting. Even though the model is entirely trained on video games, by decoupling visuals from motion, its predictions transfer to real-world videos.

1

Learn from the game

W

A

S

D

turn 12°

recorded gameplay

video, the keys held, the camera angles

video and the true actions

train the IDM

objective: from two frames, predict the keys held and how far the camera moved

IDM

2

Label our real video

our real video

no action labels at all

video only, no actions

IDM

the weights from step 1

what the camera did

forward

turn 12°

predicted labels

3

Train the world model

forward

turn 12°

the same video, now labelled

the actions came from the IDM

video and actions together

train the world model

on video and action pairs

world-language-action

understands actions, generates video

the same weights, carried over

the video, and the labels it predicted

Figure 1 — How RIDM can be used to train interactive world models.

1

Learn from the game

W

A

S

D

turn 12°

recorded gameplay

video, the keys held, the camera angles

video and the true actions

train the IDM

objective: from two frames, predict the keys held and how far the camera moved

IDM

the same weights, carried over

2

Label our real video

our real video

no action labels at all

video only, no actions

IDM

the weights from step 1

what the camera did

forward

turn 12°

predicted labels

the video, and the labels it predicted

3

Train the world model

forward

turn 12°

the same video, now labelled

the actions came from the IDM

video and actions together

train the world model

on video and action pairs

world-language-action

understands actions, generates video

Figure 1 — How RIDM can be used to train interactive world models.

The data

We recorded gaming footages at 1280 × 720, 48 frames per second, with 11 ground-truth key commands, the mouse movement and the exact camera angles for every frame. The annotations are provided by the engine.

What it looks like

Pool

Keys held

Turn

Tilt

Must travel

Rows

Forward

one pool with Turn, about half each

exactly W

2° or less

2° or less

walking pace or more

104,646

Turn

the same pool as Forward, not a second 104,646

none at all

10° or more

2° or less

1 unit or less

104,646

Sideways or back

A and D step sideways, S steps back

one of A, D, S

2° or less

2° or less

2 units or more

53,429

Tilt

the scarcest motion we train on

none at all

2° or less

10° or more

1 unit or less

1,554

Sideways + turn

added last, to tell a step from a turn

one of A, D

5° or more

no demand

2 units or more

50,000

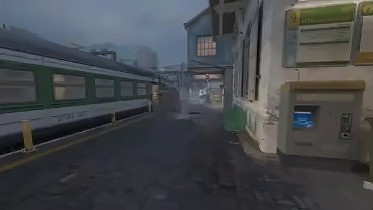

Figure 2 — Gameplay clips with the associated ground-truth annotations.

Forward

one pool with Turn, about half each

Keys held

exactly W

Turn

2° or less

Tilt

2° or less

Must travel

walking pace or more

Rows

104,646

Turn

the same pool as Forward, not a second 104,646

Keys held

none at all

Turn

10° or more

Tilt

2° or less

Must travel

1 unit or less

Rows

104,646

Sideways or back

A and D step sideways, S steps back

Keys held

one of A, D, S

Turn

2° or less

Tilt

2° or less

Must travel

2 units or more

Rows

53,429

Tilt

the scarcest motion we train on

Keys held

none at all

Turn

2° or less

Tilt

10° or more

Must travel

1 unit or less

Rows

1,554

Sideways + turn

added last, to tell a step from a turn

Keys held

one of A, D

Turn

5° or more

Tilt

no demand

Must travel

2 units or more

Rows

50,000

Figure 2 — Gameplay clips with the associated ground-truth annotations.

The model

Our model disentangles visuals from motion by projecting inputs into optical flow space. Since our goal is to use RIDM to automatically annotate real-world footages, not 3d gameplays, the method needs to transfer from games to real-world. We also compare that approach with a direct one that is working in the pixel space. To differentiate both, we use names: flow-based and pixel-based model.

Training both models on random gaming footages will not work either. Successful approach requires data filtering and resampling. For instance, some actions such as backward or sideways strafe movements are much more rare than simple forward movements. Suitable resampling helps in learning these less common movements.

Both models are compact. The flow-based model has 2.8m (2,785,499) parameters; with only 1.8m (1,795,337) trainable parameters and about 990k frozen that constitutes RAFT-small. The pixel-based model is fully trainable and has around 9.8m (9,836,063) parameters.

Pixels

the IMPALA trunk, the one VPT uses for its policy

every pixel

IMPALA trunk

3 residual stacks

Embedding

one vector per frame

Transformer

150-frame window

Predicts

W A S D Shift

yaw, pitch

Optical flow

RAFT-small estimates the motion, and nothing after it sees a pixel

motion only

RAFT-small

frozen, 0.99 M

Convolution stem

stride 16

Transformer

4 layers, 5 frames

Predicts

W A S D Shift

yaw, pitch

Figure 3 — High-level diagram of both approaches to implement Inverse Dynamics Model. We use either IMPALA or RAFT as the corresponding feature extraction mechanism that maps inputs into its own representation.

Pixels

the IMPALA trunk, the one VPT uses for its policy

every pixel

IMPALA trunk

3 residual stacks

Embedding

one vector per frame

Transformer

150-frame window

Predicts

W A S D Shift

yaw, pitch

Optical flow

RAFT-small estimates the motion, and nothing after it sees a pixel

motion only

RAFT-small

frozen, 0.99 M

Convolution stem

stride 16

Transformer

4 layers, 5 frames

Predicts

W A S D Shift

yaw, pitch

Figure 3 — High-level diagram of both approaches to implement Inverse Dynamics Model. We use either IMPALA or RAFT as the corresponding feature extraction mechanism that maps inputs into its own representation.

Pixel model

IDMImpalaVPT

gameplay render

one frame of game footage

1,280 × 720 × 3

resize to a square

pixels are area-averaged. 16:9 does not survive

128 × 128 × 3

window of frames

stride 75, so windows overlap by half

150 × 3 × 128 × 128

IMPALA block 1

a convolution, a halving, two residual blocks

150 × 64 × 64 × 64

IMPALA block 2

the same three parts again

150 × 128 × 32 × 32

IMPALA block 3

the same three parts again

150 × 128 × 16 × 16

average pool to 4 × 4

each channel averaged down to a 4 × 4 grid

150 × 128 × 4 × 4

flatten

128 × 4 × 4 numbers per frame

150 × 2,048

residual attention

attention over the window, both directions, 8 heads

150 × 512

post-attention layer

ReLU, linear, layer norm, on every frame

150 × 512

key head, rotation head

run on every frame: W A S D Shift, yaw and pitch

150 × (5 + rotation)

Flow model

FlowTransformer, the one we shipped

gameplay render

one frame of game footage

1,280 × 720 × 3

resize to a square

the same squash, the same loss

128 × 128 × 3

5 frames

consecutive, one gap apart

5 × 3 × 128 × 128

RAFT-small

an optical-flow network, frozen. It reports where each pixel went

4 × 2 × 128 × 128

conv stem

3 convolutions, each one shrinking: stride 16 in all

4 × 192 × 8 × 8

flatten to tokens

8 × 8 per map, plus one CLS token

(256 + 1) × 192

+ embeddings

position, frame index, and the frame gap on CLS

(256 + 1) × 192

transformer encoder

4 layers, pre-norm, GELU, 4 heads

(256 + 1) × 192

take the CLS token

one vector for the whole clip

192

key head, rotation head

W A S D Shift, and yaw and pitch

5 + rotation

Inside the pixel trunk

three levels, each one opening the level above it

One IMPALA block

three of these make the trunk. Only the max pool changes the shape; the residual blocks keep it.

conv 3 × 3

pad 1, keeps the size

→

max pool 3 × 3

stride 2, halves it

→

↺ the input is added back

residual block

opened up below

→

↺ the input is added back

residual block

the same again

in: C × S × S

out: C′ × S/2 × S/2

Every convolution here is 3 × 3 with padding, so a residual block changes the numbers and not the shape.

One residual block, opened up

two of these sit inside every IMPALA block above

GroupNorm

→

ReLU

→

conv 3 × 3

→

GroupNorm

→

ReLU

→

conv 3 × 3

→

+ the input

The shape never changes across these six. Only the max pool above it does that.

GroupNorm

the norm inside the residual block, and what it averages over

the channels of one frame, split into 8 groups

μ and σ² come from one group alone: its channels, every pixel of them, one frame

y = γ · (x − μ) / √(σ² + ε) + β

γ and β are learned, one pair per channel. ε keeps the divide safe.

BatchNorm would average across the batch instead. GroupNorm does not, so what one frame becomes never depends on which frames happen to share its batch.

Inside the flow front end

the one network the flow column names, and the only part of it we did not write

RAFT-small

the optical-flow network in the flow column, two rows up

frame t

frame t+1

→

one vector for every pixel: how far it moved, and which way

2 channels, the sideways part and the up-and-down part

A published network used with its pretrained weights and never trained, so it learns nothing about this game. That is the point: the flow of a corridor and the flow of a street look alike, and a pixel of each does not.

Figure 4 — Both architectures presented in details.

Pixel model

IDMImpalaVPT

gameplay render

one frame of game footage

1,280 × 720 × 3

resize to a square

pixels are area-averaged. 16:9 does not survive

128 × 128 × 3

window of frames

stride 75, so windows overlap by half

150 × 3 × 128 × 128

IMPALA block 1

a convolution, a halving, two residual blocks

150 × 64 × 64 × 64

IMPALA block 2

the same three parts again

150 × 128 × 32 × 32

IMPALA block 3

the same three parts again

150 × 128 × 16 × 16

average pool to 4 × 4

each channel averaged down to a 4 × 4 grid

150 × 128 × 4 × 4

flatten

128 × 4 × 4 numbers per frame

150 × 2,048

residual attention

attention over the window, both directions, 8 heads

150 × 512

post-attention layer

ReLU, linear, layer norm, on every frame

150 × 512

key head, rotation head

run on every frame: W A S D Shift, yaw and pitch

150 × (5 + rotation)

Flow model

FlowTransformer, the one we shipped

gameplay render

one frame of game footage

1,280 × 720 × 3

resize to a square

the same squash, the same loss

128 × 128 × 3

5 frames

consecutive, one gap apart

5 × 3 × 128 × 128

RAFT-small

an optical-flow network, frozen. It reports where each pixel went

4 × 2 × 128 × 128

conv stem

3 convolutions, each one shrinking: stride 16 in all

4 × 192 × 8 × 8

flatten to tokens

8 × 8 per map, plus one CLS token

(256 + 1) × 192

+ embeddings

position, frame index, and the frame gap on CLS

(256 + 1) × 192

transformer encoder

4 layers, pre-norm, GELU, 4 heads

(256 + 1) × 192

take the CLS token

one vector for the whole clip

192

key head, rotation head

W A S D Shift, and yaw and pitch

5 + rotation

Inside the pixel trunk

three levels, each one opening the level above it

One IMPALA block

three of these make the trunk. Only the max pool changes the shape; the residual blocks keep it.

conv 3 × 3

pad 1, keeps the size

→

max pool 3 × 3

stride 2, halves it

→

↺ the input is added back

residual block

opened up below

→

↺ the input is added back

residual block

the same again

in: C × S × S

out: C′ × S/2 × S/2

Every convolution here is 3 × 3 with padding, so a residual block changes the numbers and not the shape.

One residual block, opened up

two of these sit inside every IMPALA block above

GroupNorm

→

ReLU

→

conv 3 × 3

→

GroupNorm

→

ReLU

→

conv 3 × 3

→

+ the input

The shape never changes across these six. Only the max pool above it does that.

GroupNorm

the norm inside the residual block, and what it averages over

the channels of one frame, split into 8 groups

μ and σ² come from one group alone: its channels, every pixel of them, one frame

y = γ · (x − μ) / √(σ² + ε) + β

γ and β are learned, one pair per channel. ε keeps the divide safe.

BatchNorm would average across the batch instead. GroupNorm does not, so what one frame becomes never depends on which frames happen to share its batch.

Inside the flow front end

the one network the flow column names, and the only part of it we did not write

RAFT-small

the optical-flow network in the flow column, two rows up

frame t

frame t+1

→

one vector for every pixel: how far it moved, and which way

2 channels, the sideways part and the up-and-down part

A published network used with its pretrained weights and never trained, so it learns nothing about this game. That is the point: the flow of a corridor and the flow of a street look alike, and a pixel of each does not.

Figure 4 — Both architectures presented in details.

Evaluation

We tested the generalisation of both approaches on videos that neither method has seen during training. As expected, the flow-based model works better, with the biggest gains obtained when transferring from gaming footages to real-world video clips.

In evaluation, we used three datasets:

• Real-world videos with camera angle labels,

• Real-world GoPro footage,

• Synthetic, 3d gaming footages.

Note that real-world datasets hold only forward and turn actions.

Each dataset asks two questions; totalling six different configurations. Did the camera go forward or turn? If it turned, which way?

• The flow-based model works better on five out of the six configurations,

• On real-world video the gap is the largest. The flow-based model gets 86 % while the pixel-based model gets only 31 %,

• The pixel model is only better to predict GoPro turn direction, and only by a single clip.

Table 1 — Two models benchmarked on six different evaluation configurations. Since the ground-truth label derived from sensors is inaccurate in real datasets — Real video and GoPro — we manually inspected predictions to calculate accuracies. For gaming footages, we use available ground-truth annotations.

Our RIDM, of course, occasionally fails in some situations:

• it reports false turns on static frames and on dark frames,

• when it has to disentangle side step and opposite yaw turns. For example when the person is stepping right and turns camera left at the same time,

• it reports walk keys on a camera that stands still and zooms in / out,

• the camera stabilization on action-camera footage hides part of the rotation.

We believe that training on more data, especially on the data containing camera effects like zooming or stabilisation, would improve the model’s performance on the failures above.

Visualisations

We show a few real-world egocentric footages together with model predictions. We report positive prediction together with the model failures.

Extras

Real-world footage is based on Wikimedia Commons, licensed CC BY 3.0.

Weights are stored in safetensors format and can be downloaded under RekaAI/Reka-Inverse-Dynamics-Model on Hugging Face. Each folder also holds config.json and inference.py.

• Flow model: flow/model.safetensors (7,189,300 bytes)

• Pixel model: pixel/model.safetensors (39,353,324 bytes)

License

The weights and inference code in this repository are released under the Apache License 2.0. This applies to Reka’s model weights and code only. Pixel model: self-contained; no third-party model weights are required. Flow model: requires optical flow computed by RAFT-small, which is not included and must be obtained separately from Torchvision. The Torchvision and RAFT code is BSD-3-Clause. The pretrained RAFT weights were trained on datasets that are subject to their own terms, which may restrict commercial use. You are responsible for reviewing and complying with those terms before using the flow model in a commercial setting. We make no representation about their applicability. These models are provided “as is,” without warranty.
